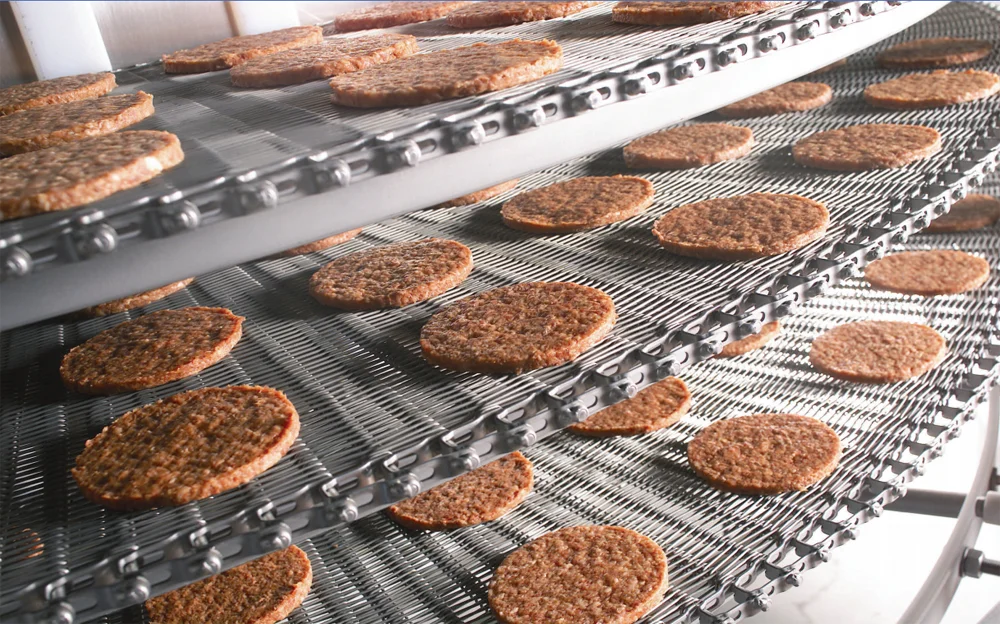

BACK Modern Spiral Freezing – The Science Behind The Process AFE Team • April 19, 2023 Home Blog Modern Spiral Freezing – The Science Behind The Process What is Spiral Freezing, and Why Is It Important? Spiral freezers are widely used in the food manufacturing and preservation industry, quickly and efficiently freezing various food products in a safe and effective manner. Spiral Freezers are often the preferred choice among quick-freezing equipment for food processing and storage due to their compact structure, small footprint, high freezing efficiency, and freezing effectiveness. Spiral Freezers: How They Work A spiral freezer mechanically transports food products on a continuous spiral conveyor belt through a tightly controlled cooling process that allows the internal freezer temperature to reach as low as -100°C. Spiral freezers are designed to quickly decrease a product’s temperature prior to transporting it or packing it for refrigerated storage. The product to be frozen is moved by a continuous conveyor belt configured in a “stacking” configuration as a series of intertwined spirals, allowing it to constantly expose a much larger amount of product to the cooling process, typically for a longer time than a linear conveyor belt can provide. Unlike tunnel freezers which require long linear conveyor belts, spiral freezers use stacked, multi-tiered belts to maximize product intake while reducing the necessary area required, saving space and resulting in a smaller footprint for the freezing unit, as well as more efficient freezing. This 360 Degree continuous freezing process ensures that the entire surface of the product is frozen more quickly and evenly. The intertwined spiral conveyor is also less prone to ice buildup, providing continuous freezing while reducing the need for maintenance and cleanup. 1. Wide Range of Applications Using a spiral freezer has many advantages for food processing. A spiral freezer can be used for freezing, dehydrating, and cooling. Because of their wide range of applications, spiral freezers are very practical for any food processor. Due to its design and ease of operation, it is very easy to integrate into most food processing systems. 2. Economy of Floor Space One of the main advantages of spiral freezer systems is that they require little floor space. This makes them ideal for placement under or beside existing equipment and facilities. Spiral freezers may also be placed on storage racks, freeing up much-needed space for other food processing necessities. 3. Customizable Conveyor Speeds The speed at which a spiral freezer moves can be customized depending on your specific operations and needs. Depending on storage space, volume, or product characteristics, you might need to move products quickly or slowly; spiral freezer systems can accommodate each variable. You’ll be able to maintain efficiency no matter what your production requires. 4. Customizable Temperature Setting Commercial spiral freezer systems come with different temperature setting options, making it easy to customize your freezing and cooling needs. Food processors can choose from three temperature settings: pre-freezing, freezing, and chilling. The pre-freezing setting is typically used when preparing foods for storage or transportation while freezing, and chilling temperatures are better suited for long-term storage. 5. High Hygiene Because of Touch-Free Operation As spiral freezers only touch products when opening and closing, they are very hygienic. Spiral freezers operate with sterilized stainless steel holding trays that do not contact any food. The cold airflow is also germ-free. This means that spiral freezers are perfect for applications where hygiene is paramount. They Guarantee Better Product Quality Spiral freezing systems guarantee faster freezing cycles. It translates into exceptional product quality at the end of the processing line. A thorough freezing process secures your products’ surface more efficiently. As such, frozen items retain their essence, original texture, and freshness. The dynamic cooling process kills bacteria and guarantees longer shelf life for your products. The Science A parametric analysis comparing the heat transfer and operating characteristics of both tunnel and spiral belt freezers has been carried out using liquid nitrogen sprays under typical commercial freezing conditions. Experimental data were obtained for a controlled spray pressure of 2.4 bar, and two selected pizza sizes (128 and 180 mm diameter) were used based on a freezing capacity of 500 pizzas per hour. The freezing time of the two pizza samples was between 4.1 and 4.4 min in the spiral belt and tunnel freezers, respectively, and appeared to vary directly with sample mass. The average heat transfer coefficients in the precooling section were 28 and 35 W m−2 K−1 in the tunnel and spiral belt freezers, respectively. These values were about 16 and 15 of the overall heat transfer coefficients in the freezing section, and 116 and 115 of the average heat transfer coefficients of individual droplets, respectively, while maintaining freezer temperature between −140 and −150 °C during freezing. Drip losses were low (0.55 to 0.6%) in both freezer types, and microbial destruction was in the order of six-fold. The mean sensory scores for textural feel of the frozen-thawed samples were not significantly different (P > 0.05), but panelists detected significant differences (P < 0.05) among samples on visual appearance. —An appraisal of the freezing capabilities of tunnel and spiral belt freezers using liquid nitrogen sprays – Journal of Food Engineering, Volume 34, Issue 2, November 1997, Pages 179-192 Your partners at Advanced Food Equipment LLC. invite you to explore the durability and craftsmanship of the products we offer. We think you’ll agree— AFE is passionately dedicated to providing our customers with the best and most effective long-term equipment options available when anticipating all of your food production needs. Contact us to work with you in developing your food production strategy today! Enjoyed? Share It! Share on Facebook Share on X Share on LinkedIn Copy URL Recent blog posts More AFE Team • November 15, 2016 Foodsafe LED-lighting Ledlighting Ledlighting b.v., in association with AFE, has developed LED armature for the food processing industry. The armature complies with the strict legislation and has obtained an official certificate: Foodsafe Through […] More AFE Team • August 25, 2016 Freezing for Success Freezing for Success If you’re looking for products that reflect the latest advancements in freezing technologies, you’ve come to the right place. Recent enhancements in cooling technologies take into requirements such […] More AFE Team • January 8, 2024 Playing it Cool: Freezer Maintenance Strategies and Why They Matter Anyone who works in a field that utilizes an industrial freezing system understands the critical importance of maintaining optimal performance and ensuring food safety while keeping production running smoothly for […] Related blog posts More AFE Team • May 18, 2018 Premium IQF Banana Bananas have been one of the most popular and consumed fruit worldwide for hundreds of years. It’s not surprising that this delicious fruit is a favorite among adults and children. […] More AFE Team • April 7, 2017 AFE Approach Our individual quick freezers (IQF freezers) and cooling machines are crafted with the foodservice industry’s unique needs in mind. Each unit is fabricated in the Netherlands, where meticulous craftsmanship ensures performance that lasts. We follow stringent C.S.A., U.S.D.A., and O.S.H.A. standards to produce equipment with an uncompromising commitment to hygiene, functionality, and longevity. This means a fully welded enclosure, sloped flooring for easy cleaning, LED lighting, and design specifications that prioritize food safety. More AFE Team • January 22, 2021 Why You Need Clean In Place (CIP) Systems For Spiral Freezers and IQF Tunnels Food processing facilities and food processors must be vigilant about hygiene. Their business depends on it. For decades, Advanced Food Equipment (AFE) has helped food processing operations maintain sanitation with […] Subscribe to our newsletter Subscribe to learn about new product features, the latest in technology, solutions, and updates. Enter your email(Required)
